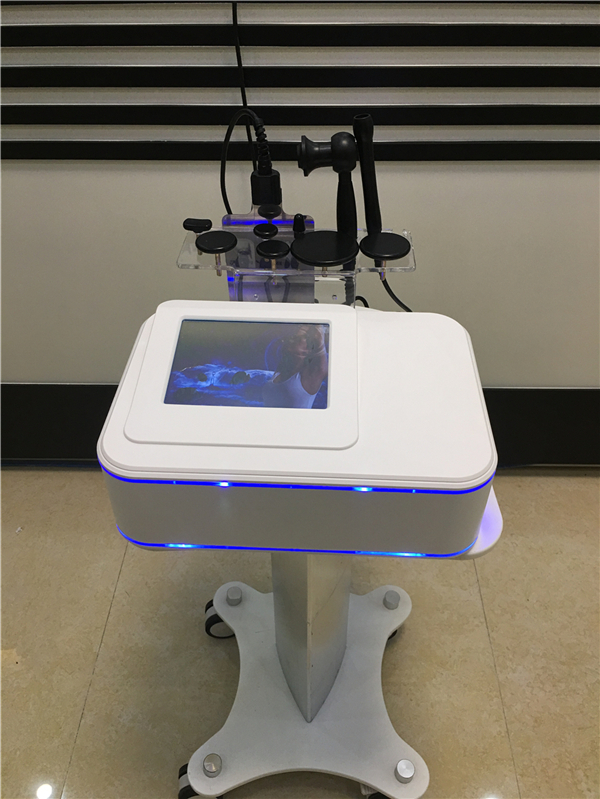

TM-RF2.0 Monopolar RF Radiofrequnecy Facial Machine

The treament sithe is placed between the plates of a capactor and becomes the dielectric. The RF energy is diffused through the part of the body locate between the plate electrodes. The oscillating fields produce distortion of molecules, rotation of dipoles and vibration of ions. The movement of the molecules and ions generates heat within the tissues. The heat caused by interaction of RF (Radio Frequency) energy and dermal resistance can reach dermal layer to heat up and stimulate the collagen fibers, making them regenerate and re-arrange, which can help the skin in better condition.

Capacitive Electric Transfer (CET) is a method that allows the RF electrical current to be transferred "by capacity" (principle of the electrical capacitor) to the patient's body via a moveable external application electrode. This is covered with an insulating film which acts as dielectric and the body acts as a second plate of the capacitor. A return plate closes the circuit. The electric circulation through the resistive medium formed by the live tissues increases its temperature.


Application
Skin lifting and skin tightening.
Wrinkle removal
Body shaping and fat reduction
Collagen stimulation and generation;

Specification
Power input: 110V-224V 50/60Hz
Maximum Power Consumption: 200W
Classification: (EN60601-1) Class 1. Type BF
Main Fuses: 2*T2A(5*20mm)
Carrier Frequency: 0.3MHz and 0.5MHz
Maximum Intensity: 80mA RMS

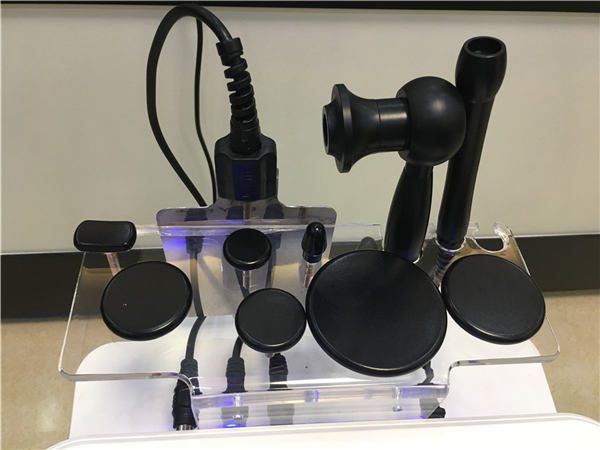

Output Modes: Round Electodes/Rectangle Type
Treatment Timer: 0-60minutes
Safety Device: Zero Start, Safety Switch
